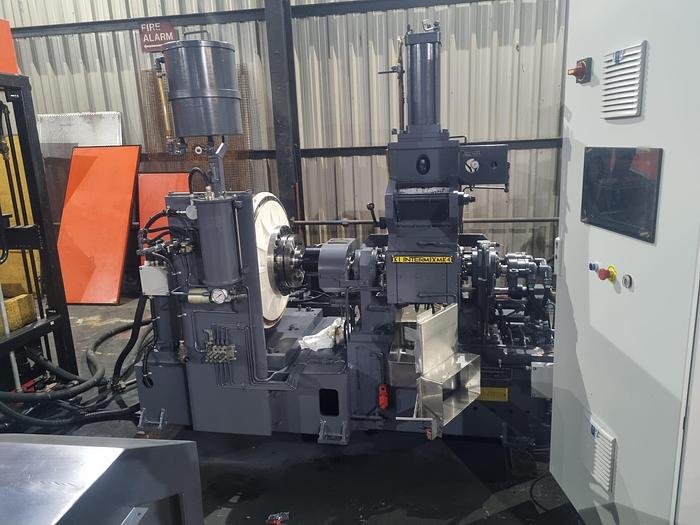

Francis Shaw model K1 mk4 Intermix

Francis Shaw model K1 mk4 Intermix

Contact us for price

Location:England, United Kingdom

orCall +441253850929

Description

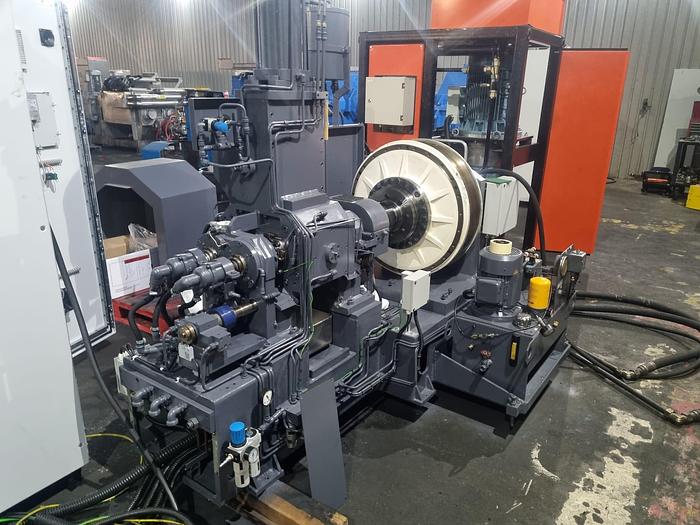

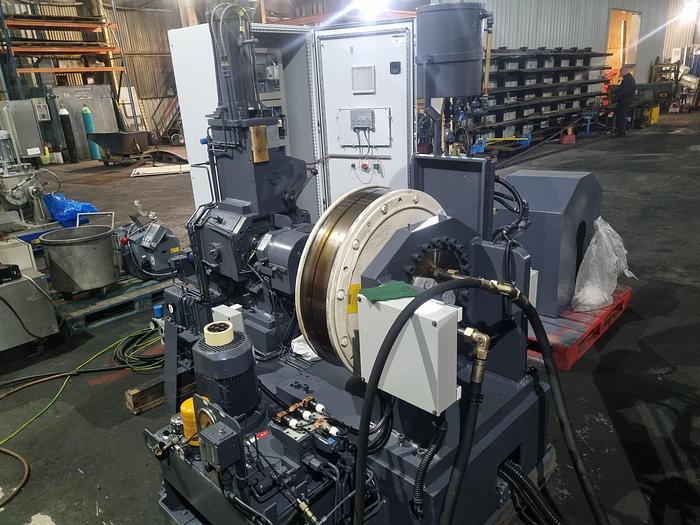

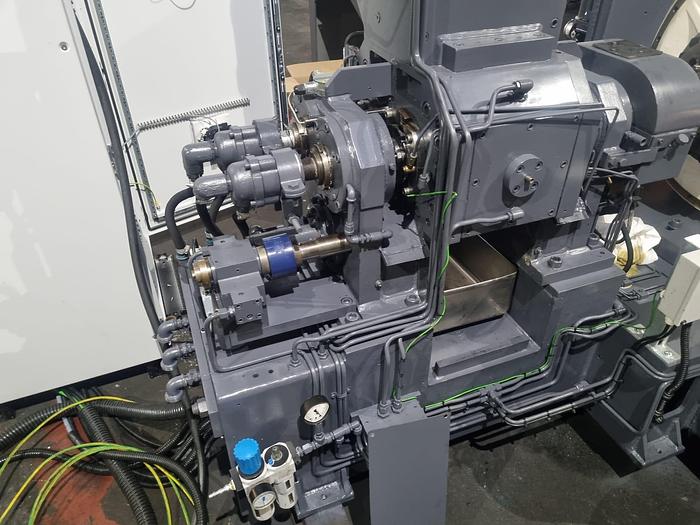

Qty 1 x Francis Shaw model K1 mk4 Intermix,

O/no. 6243, Year 1988,

Chamber volume: 5.5L,

Batch size: approx 3.5kg,

NR2 type Intermesh rotors,

Pneumatic hopper,

Pneumatic oil lubrication system,

Hydraulic drop door with hydraulic latch pin arrangement,

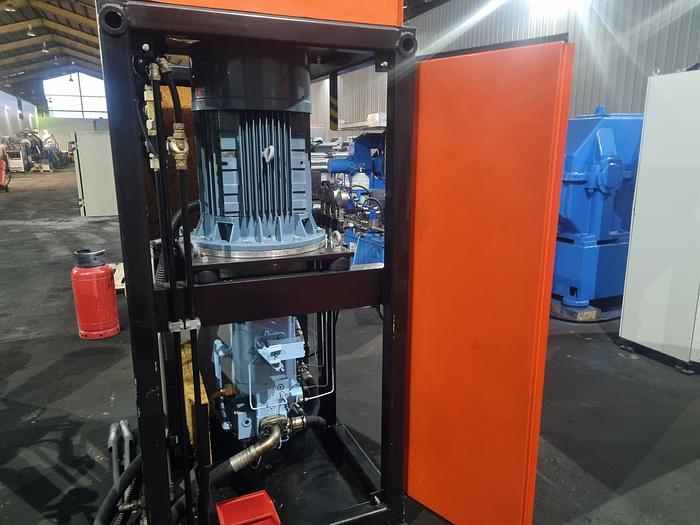

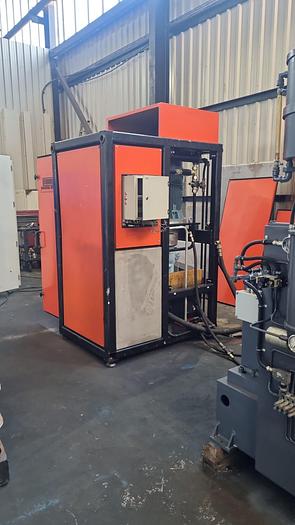

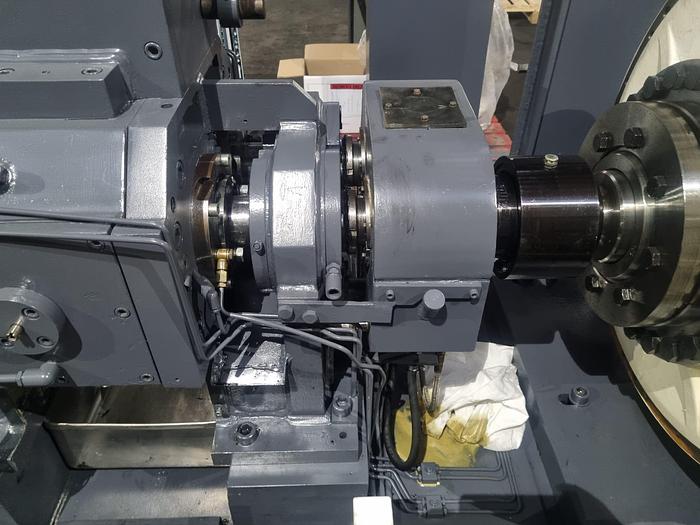

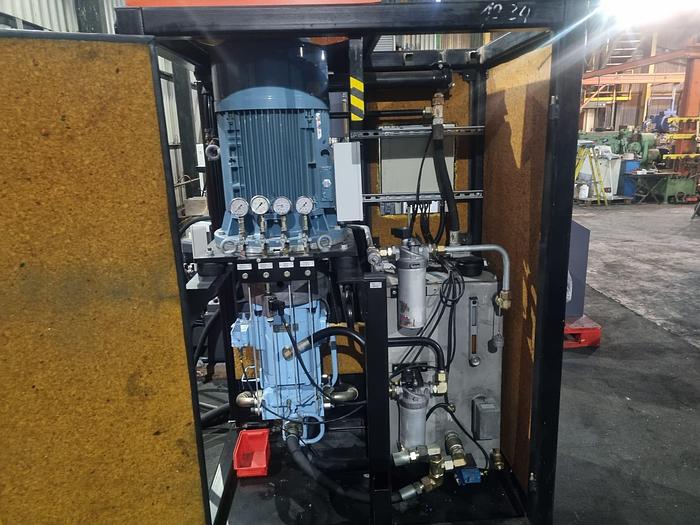

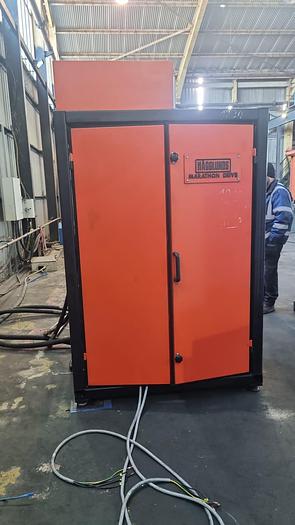

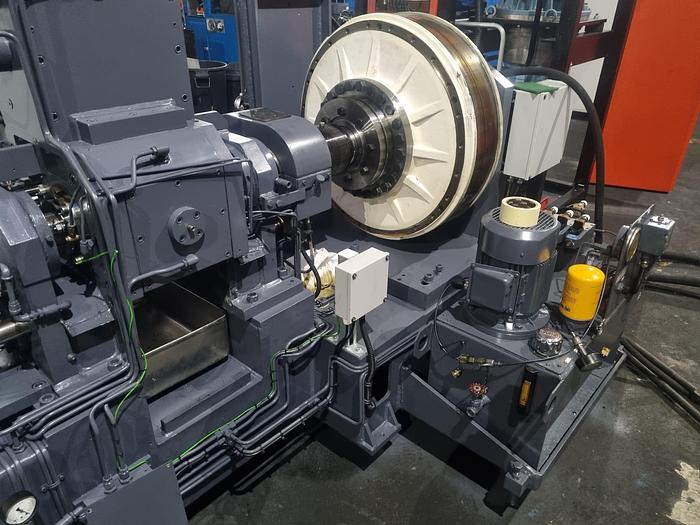

With Hagglunds Viking hydraulic drive, P14P Denison pump and ASEA 55kW pump motor.

Fabricated bedplate.

To be supplied fully checked over with the following additional work being carried out:

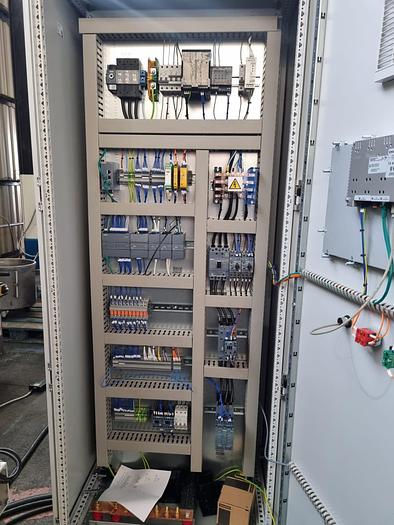

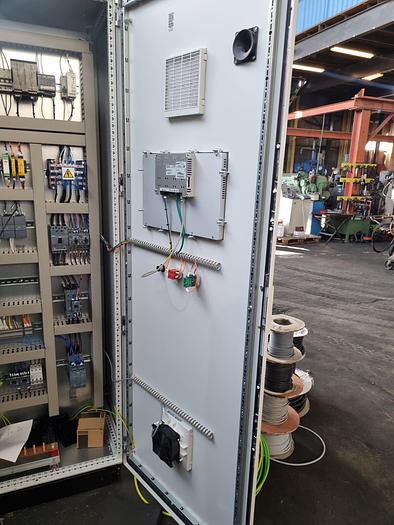

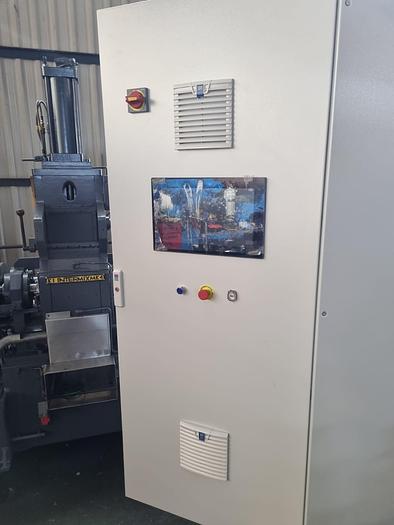

Remove existing controls. Design, build and install new operator control system with Siemens S7-1200 plc and EXOR touch screen PC. Provision for manual/automatic mixing with step sequence recipe management and data capture.Supply/fit new proportional control valve for variable ram pressure via control system.Supply/fit new transducer/RPI (ram position indicator).Check/service/repair and test all mixer components/functions.Upgrade safety system (gate switches, guarding, interlocks to drawer, limit switch on hopper load door) suitable for compliance with PUWER/CE.Supply/fit 1 x Tool-Temp TCU (Water tempering unit). Water heating up to 95°c*

Specifications

ManufacturerFrancis Shaw model K1 mk4 Intermix
ConditionRefurbished
Stock Number128059019
